Wallenstein WXT30V Log Splitter | Trailer | 30 Ton | Horz/Vert | Opens 24″ | 4.5″ Cyl
$5,790.00
Weight: 650lbs

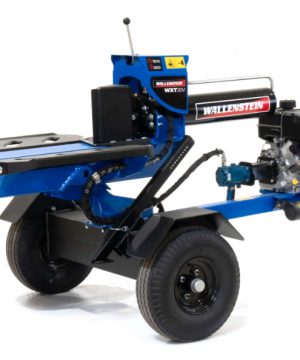

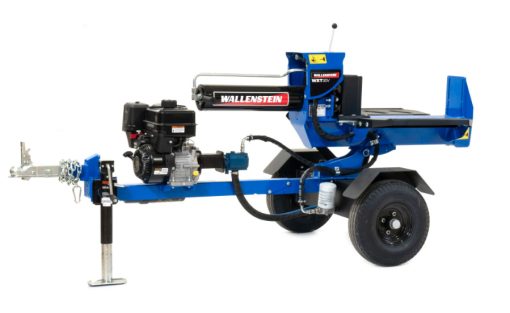

Wallenstein WXT30V Log Splitters
- Towable
- 30 Ton Split Force
- Horizontal/Vertical Splitting
- Wide Wedge
30 ton split force, the WXT30V horizontal/vertical towable log splitter is designed with a wide wedge which makes that wood block “pop” early in the split process. The vertical position helps with those heavy logs eliminating the need to lift them up onto the splitting bed. Great for use on your rural and woodlot properties or for any rental business, this splitter is built for everyday use.
| Split Force | 30 Ton |
| Engine | Vanguard® 10 hp |
| Split Opening | 24″ (61 cm) |
| Orientation | Horizontal / Vertical |
| Average Splitter Cycle Time | 7.04 Seconds |
| Full Cycle | 14.07 Seconds |
| Cylinder Diameter | 4.5″ (11.5 cm) |
| Wedge Height | 9.5″ (24 cm) |
| Bed Height | 27.5″ (69.85 cm) |
| Tires | 18.2″ (46.23 cm) |
| Hitch | 2″ Ball |
| Tongue Weight | 80 lbs (36 kg) |
| Total Weight | 650 lbs (295 kg) |
| Dimensions (LxWxH) | 104.4″ x 45.6″ x 49.9″ (265 cm x 116 cm x 127 cm) |
| Hydraulic Capacity | 6.6 US gal (25 l) |
Direct Pressure
Direct Pressure
Full splitting force is always applied because the cylinder is directly inline with the log, powering through the toughest wood with ease.
Hands Free Return Switched to reverse, the wedge returns to the start position hands free and then automatically clicks back to neutral.
Hands Free Return
Two Stage Hydraulic Pump Maximize your efficiency with the 2-stage pump that moves quickly and splits powerfully.
Two Stage Hydraulic Pump
Vertical & Horizontal Splitting Quickly and easily switch into the vertical position to split logs too large to lift onto the splitting bed.
Vertical & Horizontal Splitting
Wide Wedge Wide wedge spreads and pops the log in a short distance, reducing cycle time. Highway Towable Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.
Wide Wedge
Highway Towable
| Weight | 650 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
