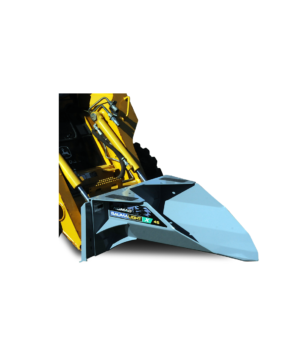

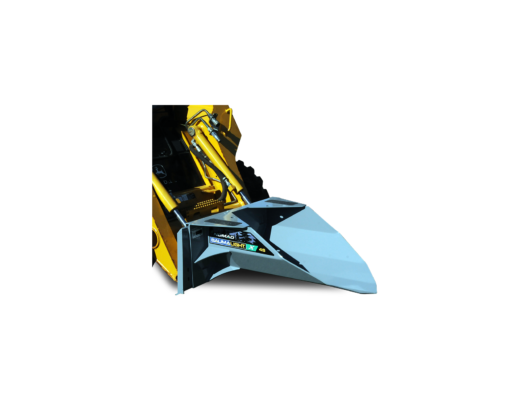

Baumalight X4S

2″ Evergreen
1.5″ Hardwood
Wheeled Skidsteer – 4400 lbs
Tracked Skidsteer – 4000 lbs
Wheel Loader – 3500 lbs Min.
Backhoe – 3500 lbs
Telehandler – 3500 lbs

Model
Tree Size (Evergreen)	1.5″	1.5″	2″	2″
Tree Size (Hardwood)	1″	1″	1.5″	1.5″
Root Ball Diameter	22″	22″	28″	28″
Root Ball Depth	20″	20″	25″	25″
Blade Thickness	1/4″ High Alloy	1/4″ High Alloy	1/4″ High Alloy	1/4″ High Alloy
Blade Truncation	Sharp	Sharp	Sharp	Sharp
Skid Steer Attachment	Standard Mini Skidsteer	Bobcat Mini Skidsteer	Standard Universal	Blank Weld-On
Loader adapter – Availability / Model	–	–	Bolt-on	–
Width – Scoop (Plate)	23″ (24″)	23″ (36″)	28″ (44″)	28″ (44″)
Length	35″	36″	43″	43″

RIGIDITY

The 8 panel structured shape gives the scoop added strength and an aggressive tip for digging.
This Scoop is made of ¼” AR400 Steel

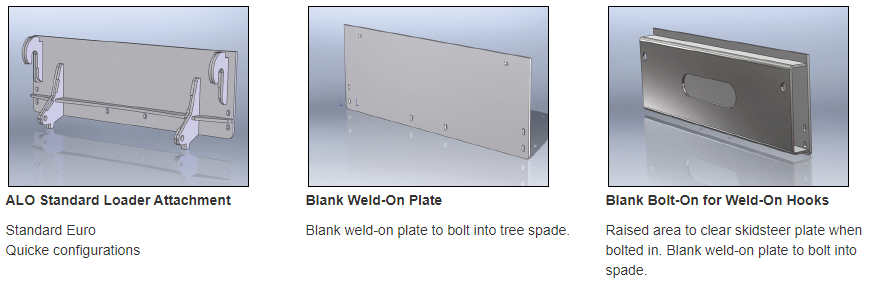

The loader mounts bring the tree moving power of Nomad to your loader. Tractor loaders often have more lift capacity than skid steers and in some cases give you greater flexibility in positioning, however because positioning around the tree to be moved is so critical and ground level visibility is limited on tractor loaders we recommend that using a Nomad on a loader is a two person job. Once the frame is positioned on the ground, the controls for the spades are located on the Nomad so that the operator has the best possible visibility during the spading operations.

WLD001541	Blank Weld On Flat Plate
WLD001534	Blank Weld On Raised Plate
WLD001535	Euro Global Mount
WL10M	Custom HLA Hooks

______________________________________________________________________________________________________________________________________________________________________________________________________

PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB ATWOOD, KS

Weight	255 lbs

WLX4S

Tree Scoop-Sharp Tipped | Universal Skid Standard | Optional Euro & Weld On Mounts

Baumalight X4S
