Worksaver 48″ 12V Electric Grapple | Univ Skid Sub Compact Tractors | 9.25″ Tine Spacing
$3,170.00
Weight: 247lbs

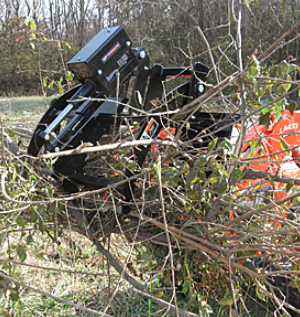

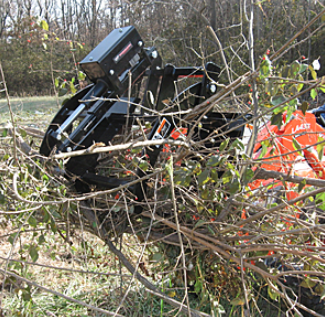

Worksaver Electric Sub-Compact Grapple Rakes
No auxiliary hydraulics to operate the clamp on a grapple? No problem with Worksaver’s (patent applied for) Electric Sub-Compact Grapple. All you need is a connection to the battery. Engineered for Sub-Compact tractors (up to 32-hp) with a loader to handle debris & so much more. The ESCG-48S and ESCG-48JD are opening up possibilities never before available to large and small property owners.
- 12-volt linear actuator with 8-inch stroke operates the grapple clamp
- Includes wiring harness for direct connection to the tractors’ battery
- Pre-wired rocker switch controls the grapples’ linear actuator
- Designed for sub-compact tractors up to 32 horsepower
- Clamping force rated at 1000 lbs.
The Grapple Rake is designed for handling loose logs, trees, stumps, brush, or other loose material. It is not designed for bulldozing. The rake frame is not designed to bulldoze out stumps or buried rocks. DO NOT turn when tines are in ground. To prevent damage to the grapple clamp arm, DO NOT use the grapple clamp to push or lift trees, logs, or stumps. DO NOT use the grapple clamp arm to rake or pull material back. The grapple clamp is designed for holding material against the rake main frame for handling only. It is NOT built for pushing, pulling, raking, or lifting heavy objects.
WARNING: Read and understand the operator’s manual before operation. Be sure tractor/skid steer is properly counterbalanced. Damage to equipment or personal injury could occur.
| Electric Sub-Compact Grapple Rake Specifications | ||
| ESCGSS-48A | ESCGJD-48A | |
| Overall Width (in/mm) | 49 / 1245 | 49 / 1245 |
| Mount Type | Skid Steer | JD Hook & Pin |
| Overall Height Closed (in/mm) | 41.5 / 1054 | 41.5 / 1054 |
| Grapple Opening (in/mm) | 31 / 787 | 31 / 787 |
| Upper Grapple Width (in/mm) | 28.25 / 718 | 28.25 / 718 |
| Lower Grapple Width (in/mm) | 49 / 1245 | 49 / 1245 |
| Tine Spacing (in/mm) | 9.25 / 235 | 9.25 / 235 |
| Number of Tine/Grapple (lower/upper) | 6 / 3 | 6 / 3 |
| Type of Linear Actuator | 12-volt, IP65 Rated | 12-volt, IP65 Rated |
| Actuator Stroke (in/mm) | 8/ 203 | 8 / 203 |
| Weight (lbs/kg) | 247 / 112 | 240 / 109 |
| Product No. | 811880 | 811885 |
| Weight | 247 lbs |
|---|
