WF15504913-WC

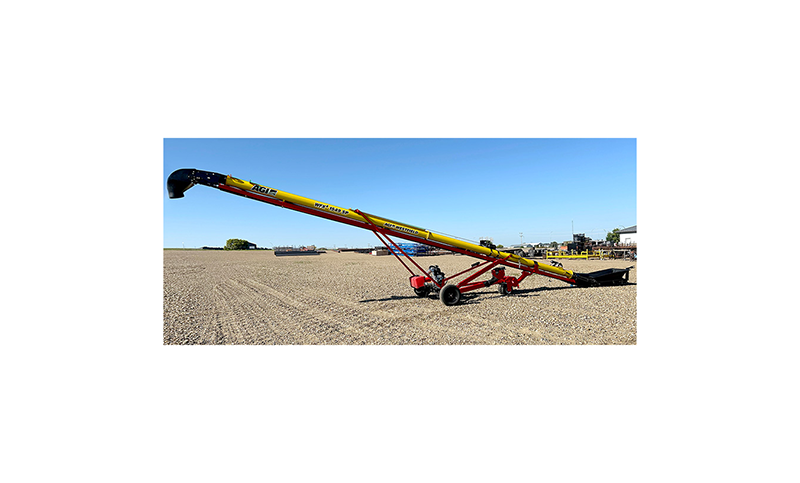

FX4 1549FLTD SP Conveyor | Pinch Roller | 15″ Belt | 49′ L | Up To 8,000 BPH | Gas-Hyd | Self Mover
$34,500.00
Westfield Belt ConveyorsÂ
AGI Westfield Belt Conveyors are built tough to perform, yet designed and engineered for gentle handling of delicate seeds and commodities.
Gentle Handling
Specialty crops, seed and some commodities are very susceptible to impact damage caused by conventional grain handling systems. AGI Westfield Belt Conveyors minimize impact damage and help protect grade quality and germination performance of seed.
Low Maintenance / Long WearÂ
Engineered, designed and built for rugged, long-lasting performance with heavy-duty features like our quality rubber belting, rated up to 3,000 hours.
High CapacityÂ
All AGI Westfield Conveyors are designed and built for high capacity and performance. Capacity increases as the angle of elevation decreases. See specifications for model performance.
Low HP
AGI Westfieldâs unique design requires half the horsepower of screw augers, saving energy and freeing up larger tractors for other purposes.
Clean Convenience
AGI Westfield Belt Conveyors require very little clean-out when changing from one commodity to another; saving growers time and reducing contamination.
Westfield WFX4 1500 SP Series Field Loaders
10″ Tube | 15″ Belt | Up To 8,000 BPH | 39′ | 44′ | 49′ lengths
The WFX4Â field loader is your go-to solution for efficient grain handling. With a no-nonsense discharge hood and a new pinch roller design, it delivers smoother operation and better belt tractionâso you can spend more time moving grain.
The gas over hydraulic the WFX4Â is built to perform even when power sources are limited. Its rugged A-frame construction and 10″ tube with a 15″ chevron belt offer up to 7,000 BPH capacity, available in 39′, 44′, and 49′ lengths.
Key Features
- Straight-down grain flow from the spout for clean discharge
- Pinch roller design improves belt traction and simplifies assembly
- Gas over hydraulic drive
- Self-Propelled Mover Kit
- Hopper lifting handle for guided positioning
- Pivoting under-hopper skid plate protects the belt and enables easy clean-out
- Optimized hitch weight with additional balance points

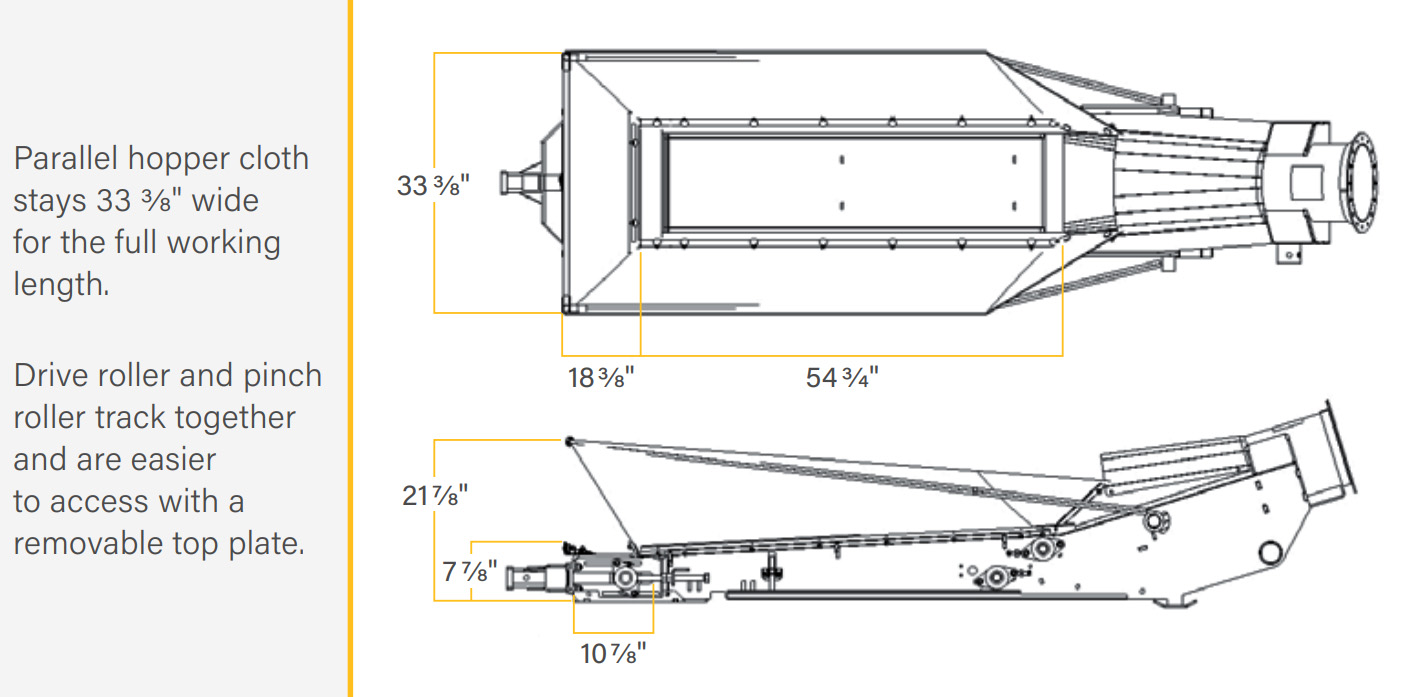

- Field Loader Top Drive (FLTD): Parallel hopper cloth stays 33 3/8″ wide for full working length
- Short FLTD option: Designed to fit under low bin unloads
WFXâ´ SP Mover Kit
Take mobility to the next level. Â
The WFX4 comes with the self-propelled mover kit, featuring hydraulic steering and all-terrain tires for tight turns and easy bin access. No lifting requiredâjust smooth movement around the yard.
The GFX4 SP Offers
- Parallel hopper cloth for consistent width across the working length
- Removable top plate for easy access to drive and pinch rollers
- Increased capacity of up to 8,000 BPH
- Gas over hydraulic drive
Available in 39′, 44′ and 49′ lengths, the FX4Â SP gives you more power, more reach and more efficiency.

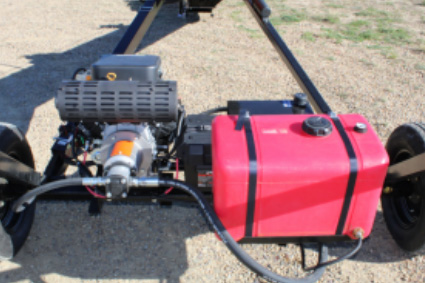

Drives

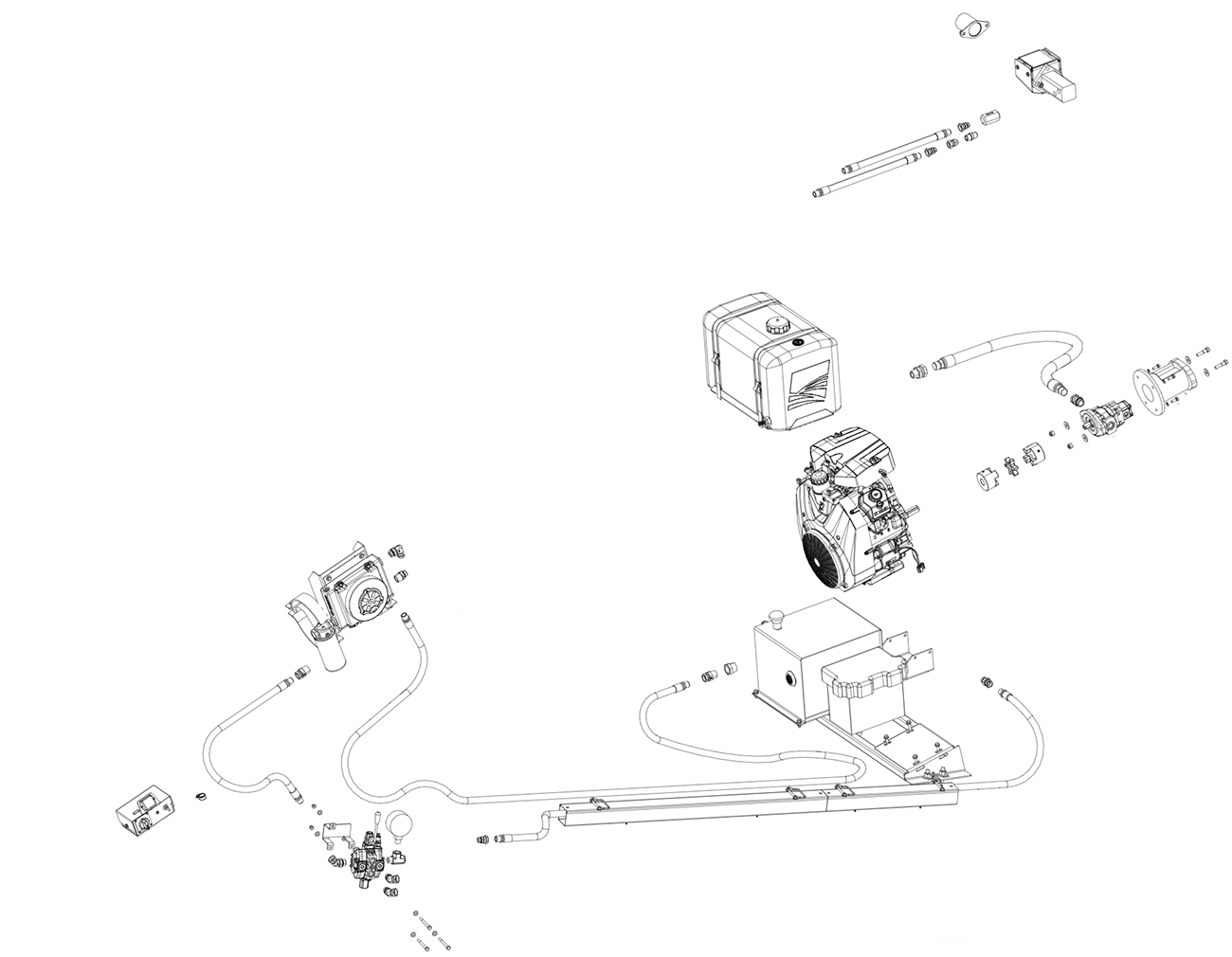

Comes in gas over hydraulic drive so you can move grain even when you don’t have electricity.

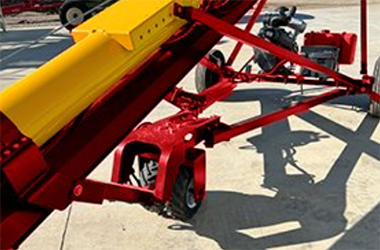

Self-Propelled Mover Kit
Hydraulic steering and all-terrain tires make maneuvering around the yard simple and efficient.

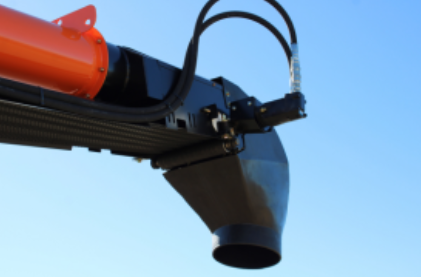

No-Nonsense Discharge Hood
Straight-down grain flow minimizes spillage and maximizes throughput.

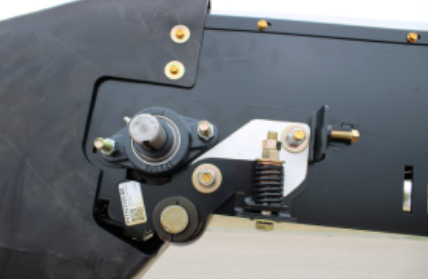

Pinch Roller Design
Improves belt traction, simplifies assembly, and boosts overall efficiency.

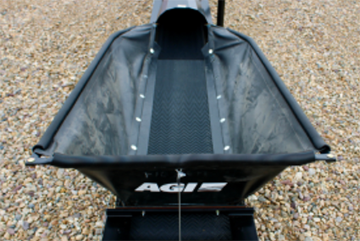

Hopper & Under Hopper Skid Plate
A pivoting skid plate protects the belt from debris and allows for easy clean-out by a single operator.
Must Add Gas Motor That Has An 1-1/8″ Bore Shaft. Westfield Sends The Unit With An 1-1/8″ Coupling Assembly That Attaches To The Gas & Hydraulic Motors.
Must Also Out-Source Fluids To Complete Unit.
