Baumalight BMS530 Barrier Mower | Univ Skid | 3,100-10,000lb Carriers | 12-25 GPM | Cuts Up To1″ Dia
PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB FACTORY

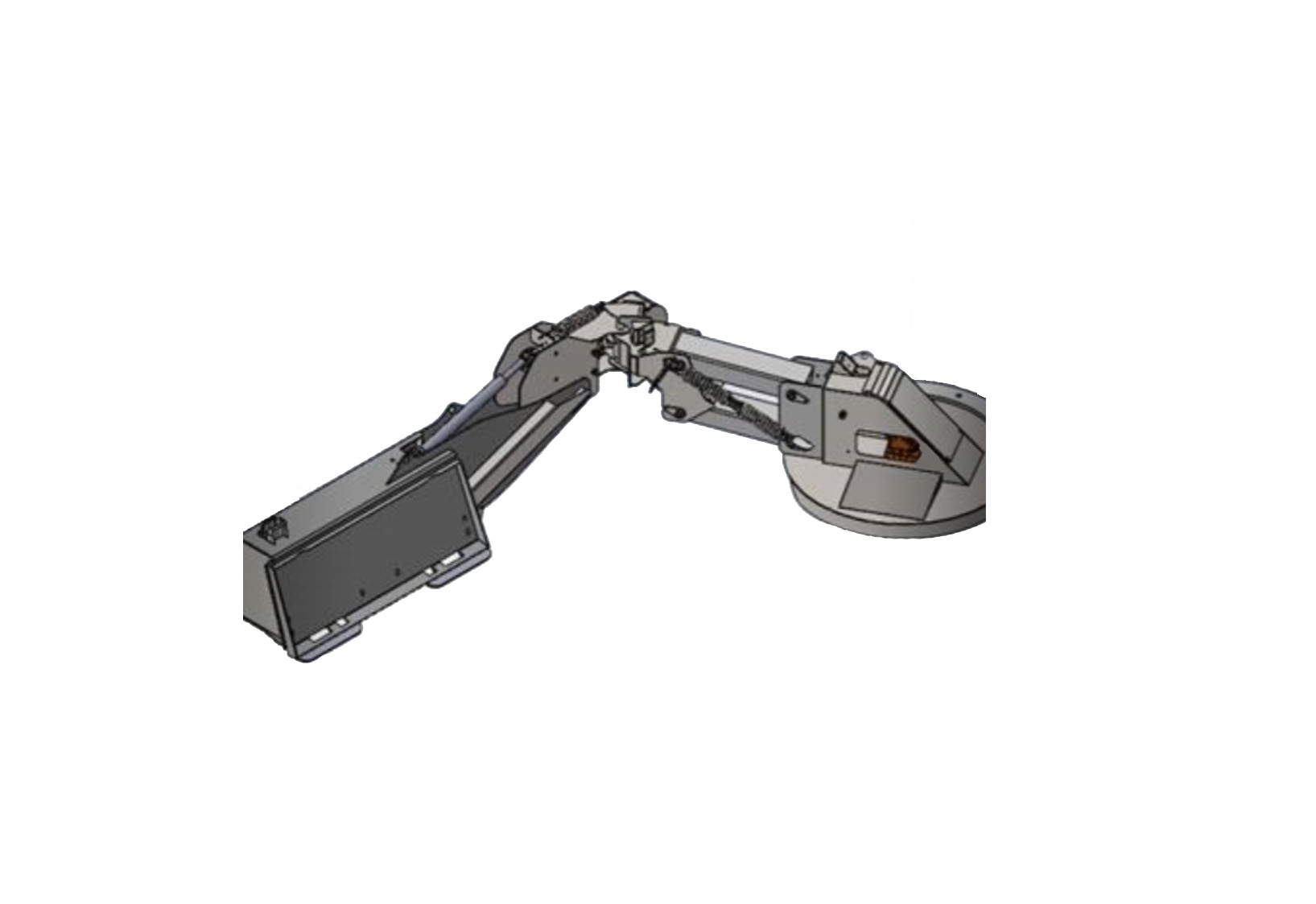

BMS530 Barrier Mower for Skidsteer
Designed for regular Skid Steers, the BMS530 is in preproduction and the goal is to design a unit that is capable of efficiently cutting through long, heavy grass or large-diameter brush. Equipped with two AR400 blades featuring a 40″ path width, the BMS530 Barrier Mower is ideal for maintaining fence lines, guardrails, orchards, and vineyards. This fence line mower easily manoeuvres around obstacles such as fence posts, crash barriers, or trees. The Barrier Mower can cut grass, but it’s built to do more than just grass as it can cut small brush as well.
The unit’s rear side, with a 40″ open mouth, is protected by a sheet metal guard that helps discharge cut material away from the operator.
It comes standard with an electrical tilt actuator which is a nice feature if you have rolling terrain.
Model No. | BMM230 | BMS530 |
---|---|---|
Available Motor Options | C508 | |
Max Brush Felling Size | 1″ | 1″ |
Discharge Protection | Sheet metal Curtain & Back | Sheet metal Curtain & Back |
Reach (Skidsteer plate to far side of cutting disk) | ||
Cutting Width | 32″ | 40″ |
Low Cutting Height | 3″ | 3″ |
Number of Blades | 2 | 2 |
Attachment Type | Universal Mini Skidsteer | Skidsteer |
Min Carrier Weight | 2,100 – 4,000 | 3,100 – 10,000 |
GPM | 8-15 | 12-25 |
PSI | 2700-4000 | 2700-4000 |
Minimum Required Amps | 30 amps Video |
30 amps Video |
System Protection | Carrier hydraulic relief system | Carrier hydraulic relief system |
Dimensions (LxWxH) | 90″x40″x30″ | 137″x72″x29″ |
Deck Structure | 4,000 lb | |
Unit Weight |
Weight | 777 lbs |
---|
