WLRSX580
RSX580 Screw Splitter/Stump Planer | Up To 8 Ton Ex | Max GPM 45 | Max PSI 3500
$4,366.00
RSX580

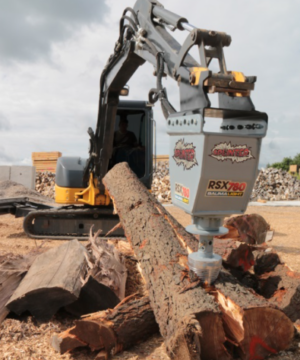

Splinter’s Log Splitter tool can split pieces of wood and logs up to 12 feet or even 20 ft long. The RSX models are designed with a bolt on excavator mount, the log splitter’s power comes from the hydraulically-driven motor mounting on a planetary drive, delivering a high amount of torque to the splitting head. The bit’s bite comes from machining two helical spirals machined into two pieces of steel. The two spirals join at the hardened tip for easy boring into the log. Driven on a 2” hex shaft or flange mount with an integrated shield that protects the drive from the rigors of splitting wood, the Log Splitter tool can tear into logs either horizontally or vertically.
The RSX excavator models have a Stump Planer tool that is designed to bolt on to your excavator. The RSX model operates at a low RPM so that chips are contained during the operation with very little mess to clean up. Ideal for urban areas or confined spaces, the Stump Planer requires less power as it does not produce as fine material as a high speed cutting wheel. This enables larger stumps to be ground faster with smaller carriers, creating better mulch for other small trees. The Stump Planer tool features a hardened replaceable tip for extra-long wear and sharpenable cutting blades.
Specs
| Model | RSX380 | RSX580 | RSX780 |
| Excavator Adaptor Code | A02 | A02 | A03 |
| Splitter Tools | 2″ Hex 14×8 splitter cone (D002193) | 2″ Hex 14×8 splitter cone (D002193) | 8-bolt flange mount 14×8 splitter cone (D003935) |
| Adaptor | Bolt on | Bolt on | Bolt on |
| Carrier Weight (Max lb) | 3 ton | 8 ton | 18 ton |
| Rec. GPM | 15-40 | 20-45 | 20-55 |
| Max. GPM | 45 | 45 | 65 |
| Rec. PSI | 2500-3000 | 2500-3000 | 2500-4500 |
| Max. PSI | 3500 | 3500 | 5000 |
| Drive Size | 2″ Hex | 2″ Hex | 8 Bolt Flange |
| Drive Type | Planetary | Planetary | Planetary |
| Hoses Included | No | No | No |
HEAVY DUTY BUILD
Features a heavy-duty encasement that locks into place for long-lasting durability.
PROTECTIVE POWDER COAT FINISH
Heavy duty construction and a durable powder coated finish.
PLANETARY DRIVE
Power comes from the Splinter/Planer’s hydraulically-driven planetary drive, delivering up to 3,800 ft/lbs of torque.
NO 12V ELECTRIC REQUIRED
With no extra electrical cables, connection is quick and easy.
MAIN SHAFT SEAL PROTECTION
The Splinter/Stump Planer flange protects the main shaft seal to prevent damage to the Splinter’s bearings from possible debris.
ONE PERSON MANEUVERING
One person can handle material without coming out of cab by drilling partially into the log and then carrying it to the desired location
EASY TO CHANGE BITS
Easily change from splitting to grinding.
AUGER ATTACHMENT
Pengo’s patented 40/50 dual angle bolt on cutting can be flipped from a 40 degree cut angle to a 50 degree cut angle for a more aggressive cut in clay and hard pack dirt. Aggressor augers also come standard with our Tri-Flow Pilot bit. The three cutting blades make it easier to start a hole and keep the bit straighter.
SPLITTING FORCE
Much higher splitting force than a cylinder splitter with the same amount of pressure.
HARDENED REPLACEABLE TIP
The Splinter’s entry tip if hardened for extra-long wear and replaceable for a longer life.
STUMP PLANER ATTACHMENT
Baumalight’s stump planer attachment operates at a low RPM so that chips are contained during the operation with very little mess to clean up. The planer’s entry tip is hardened for extra-long wear and replaceable for a longer life. The smaller leading blade is made from AR500 steel and the larger clean up blade is made with AR400 steel. Both blades can be sharpened, lowering operating costs.
NO FLYING CHIPS
Because the Splinter operates at a low RPM, chips are contained during operation with very little mess to clean up.
IDEAL FOR URBAN AREAS
The planer is ideal for urban areas and confined spaces where keeping chips contained is critical.
LARGER CHIPS
With less power required to produce fine material, larger stumps can be ground faster with small carriers, creating mulch for other small trees.
HARDENED REPLACEABLE TIP
The Splinter’s entry tip if hardened for extra-long wear and replaceable for a longer life.
HEAVY DUTY SHARPENABLE BLADES
The smaller leading blade is made from AR500 steel and the larger clean up blade is made with AR400 steel. All cutting blades can be sharpened, lowering costs by not replacing blades as often.
Excavator Mounting
Baumalight offers two options to mount your attachment on your excavator, blank weld-on plates & turn key custom solutions. All Baumalight excavator mounting options are manufactured in Canada and our team of experts will work with you to ensure you receive the best solution for your excavator.
Blank Weld-On Plates
The bank weld-on plate is designed for you to weld on your own ear lugs for your specific excavator mount. The bolt pattern in the plate lines up with the bolt pattern on Baumalight attachments, allowing you to bolt the attachment in place.
Turn-Key Custom Solutions
A fully customized solution, the team at Baumalight designs and builds your custom excavator adaptor for your specific excavator to ensure that the attachment is ready to go to work as soon as it arrives.
Add Connection Code
Click The Link Below To Find Your Specific D00**** Ex Mount
Add Turn Key Option That Corresponds With Your D00****
Please Note Your D00**** When Ordering
The Turn Key Pricing Includes The Connection Code Price
