WLTRL536D
Baumalight Mini Skid Steer | Tracked | 24.8 HP | Diesel Kubota | 10.5 GPM (No Load) | 3,000 (PSI)
$36,663.00
Weight: 2523lbs

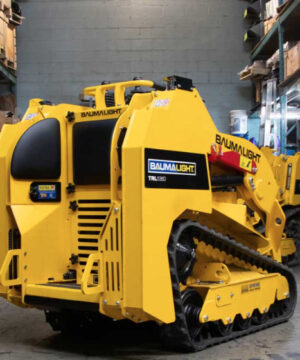

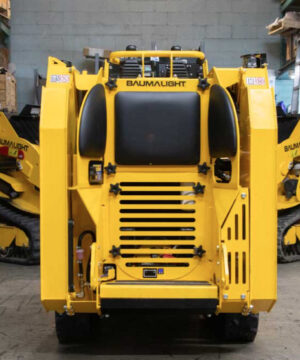

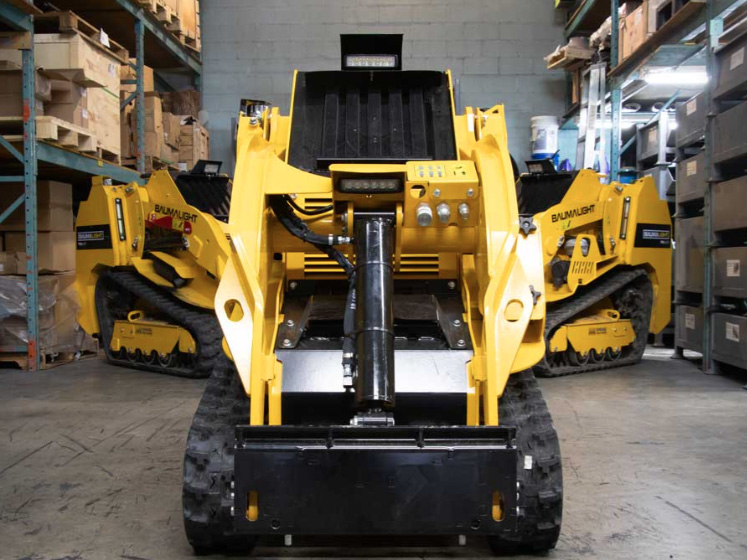

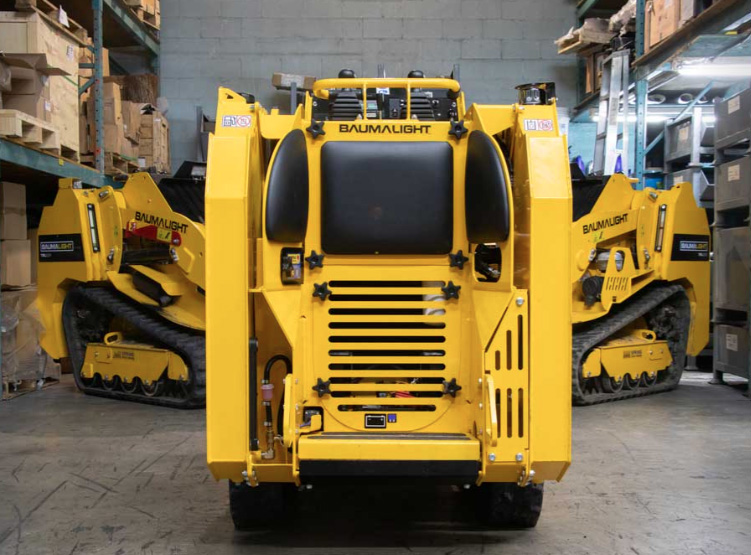

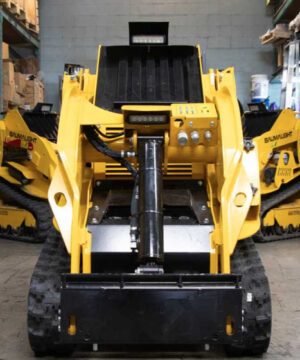

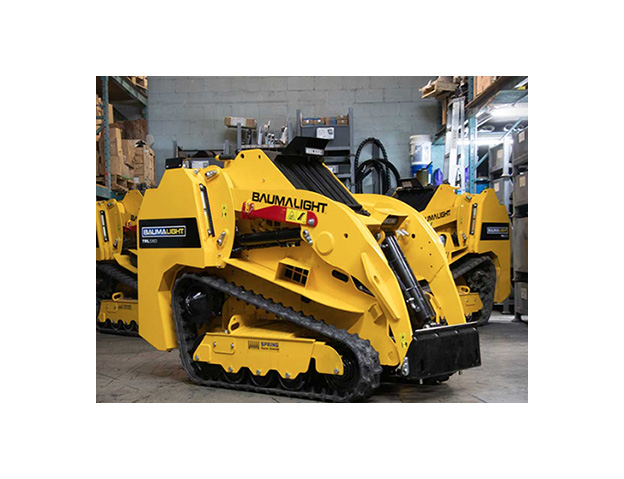

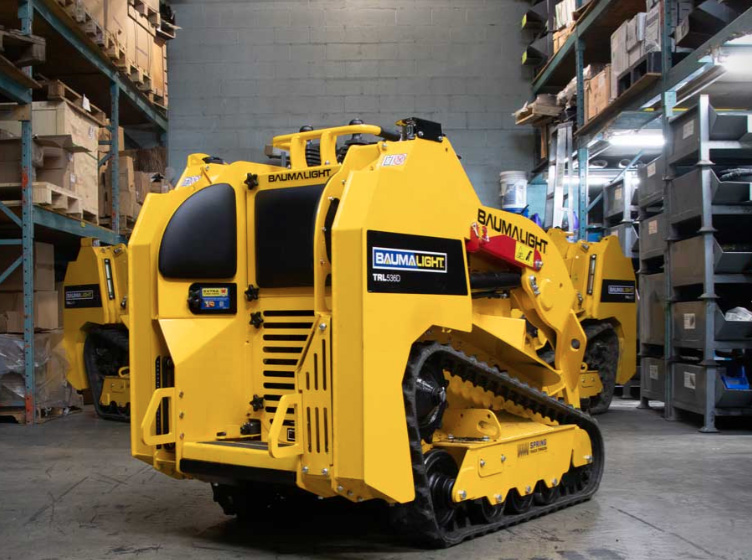

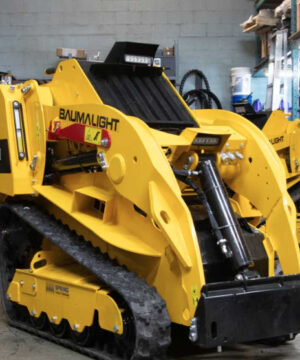

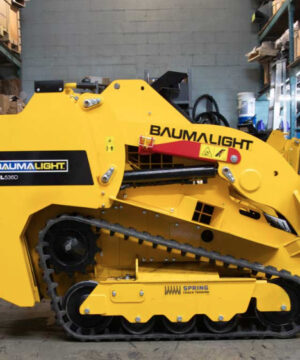

TRL536D 36” Wide Mini Track Loader Powered By Kubota
The Baumalight TRL536D is the ideal stand-on mini skid steer for a range of big and small jobs available with many tools to do a wide range of tasks.
Manufactured in Ontario Canada, the TRL536D stand-on compact Utility Track Loader is designed to easily navigate through tight spaces. Notably, with a width of 36 inches, it ensures easy access to even the most confined areas and good productivity on the tools powered with a Kubota diesel engine. Like the big skidsteers, the hydrostatic drive is configured with real joystick controls and hydraulic pilot lines. The unit ships with narrow tracks but wide tracks can be installed for less ground compaction if desired and the Baumalight all-metal frame compact track loader also has a floating smooth riding raised platform for better sight when navigating through tight spaces.
| WRL58G | TRL536D | TRL620D | TRL620Y | |
|---|---|---|---|---|
| Gross Engine HP | N/A | 24.8 HP | 24.8 HP | 23.9 HP |
| Net Engine HP | 22.1 HP | 23.9 HP | 23.9 HP | 22.8 HP |
| Peak Gross Engine Torque | N/A | 52.7 ft/lb | 52.7 ft/lb | 46 ft/lb |
| Displacement | 0.688 L | 1.1 L | 1.1 L | 1.267 L |
| Engine Type | Gas | Diesel | Diesel | Diesel |
| Fuel tank size | 12.5L | 29.25L | 40L | 40L |
| Engine Brand | Honda | Kubota | Kubota | Yanmar |
| Model | GX690 | D1105 | D1105 | 3TNV80F |
| Drive type | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive control | Joy stick | Joy stick | Joy stick | Joy stick |
| Carriage | Tires | Tracks | Tracks | Tracks |
| Size | 18 x 8.50-10 6P | 150x72x45 (upgradable) |
230 x 72 x 45 | 230 x 72 x 45 |
| Travel Speed (old) | 7.84 km/h | – | 4.57 Km/h | 4.57 Km/h |
| Travel Speed (Shipped after April 2024) | Same | 5.7 Km/h | 5.7 Km/h | 5.7 Km/h |
| Ground weight (without weight kit) | 5.5 lbs per sq. in | 5.7 lbs per sq. in (Narrow tracks) 3.9 lbs per sq. in (Wide tracks) |
4 lbs per sq. in | 4 lbs per sq. in |
| Relief setting (psi) | 2,730 | 3,000 | 3,000 | 3,000 |
| GPM under no load | 11 | 10.5 | 10.5 | 10.5 |
| Hydraulic Reservoir Capacity | 40 Litres | 29.25 Litres | 40 Litres | 40 Litres |
| Number of pumps | 3 | 3 | 3 | 3 |
| Boom control | Joy stick | Joy stick | Joy stick | Joy stick |
| Self Leveling | no | no | yes | yes |
| Pin Height | 70″ | 76″ | 76″ | 76″ |
| Ground clearance | 8″ | 6.5″ | 6.5″ | 6.5″ |
| Width (without bucket) | 38″ | 35.5″ | 40″ | 40″ |
| Length without bucket | 62″ | 70″ | 70″ | 72″ |
| Breakout force front edge of bucket | 700 | 1520 | 1730 | 1730 |
| Same as above with extra weight | 1070 | 1650 | 2000 | 2000 |
| Breakout force without bucket | 1800 | 4150 | 4250 | 4250 |
| Same as above with extra weight | 2600 | 4250 | 4300 | 4300 |
| Tipping capacity at front edge of bucket | 600 | 1190 | 1290 | 1290 |
| Same as above with extra weight | 800 | 1270 | 1385 | 1385 |
| Tipping without any attachment | 1200 | 2480 | 2580 | 2580 |
| Same as above with extra weight | 1550 | 2760 | 2930 | 2930 |
| Operating capacity (50% of tipping) | 600 | 1225 | 1290 | 1290 |
| Same as above with extra weight | 775 | 1380 | 1465 | 1465 |
| How is break out force and lifting capacity measured. | ||||
| Weight (lbs) | 1,800 | 2523 | 2,930 | 3,140 |
| Weight with weight kit | 2,200 | 2660 | 3,170 | 3,380 |
| WRL58G | TRL536D | TRL620D | TRL620Y | |
SPRING CUSHIONED FRONT IDLER
The front idler in the tracked model is spring cushioned. This spring cushioning provides relief on the undercarriage when the track hits a curb or a large rock.
OPERATING CAPACITY
The TRL536D model offers a best in class operating capacity of 1225 lbs (50% of tip capacity).
FAR REACH
When you need to reach a far distance, the Baumalight Tracked model is designed for maximum reach. This design feature allows you to load and unload trailers or dump your load from further away.
FLOATING PLATFORM
The TRL536D ships with a floating platform for comfortable operator experience. There are adjustable springs underneath the man-on-board platform that can be adjust for different personal weights to always offer the best setting for frequent users.
HYDRAULIC FLOAT
The hydraulic float feature allows the operator to gently skim the attachment along the contour of the surface without down pressure or lift.
DUAL JOYSTICK CONTROLS
The dual joystick control system allows you to easily operate the drive system and the boom at the same time.
AUX PRESSURE GAUGE AND 12V PLUG
The dashboard has a convenient auxiliary pressure gauge and a 12V plug.
STANDARD CASE DRAIN
Sometimes referred to as a third line, the case drain line will relieve any excess pressure and drain it back to your return line, then into the reservoir.
GROUND SPEED
The ground speed of the Baumalight Mini Skidsteers is quite impressive with the tracked model able to reach 4.57 km/h.
KUBOTA DIESEL ENGINE
The TRL536D model is powered by a rugged 24.5 HP Kubota D1105 Diesel engine.
COLD AIR INTAKE AND OVERSIZED RADIATOR
To increase the power and ensure cooler running, the Kubota engine has a cold air intake and an oversized hydraulic radiator.
HIGH CAPACITY FUEL TANK WITH GAUGE
The high capacity fuel tank holds 40L of fuel allowing you to work longer. The tank also comes with a convenient fuel gauge.
DOUBLE PISTON PUMP DRIVEN
Both sides of the Mini Skidsteer is driven by a dedicated dual piston hydraulic pump and a third one operates the boom & hydraulic AUX.
GROUND CLEARANCE
The TRL536D has a ground clearance of 6.5 inches.
BOOM SAFETY LOCK BAR
When you need to perform maintenance, the boom safety lock bar allows you to raise the boom and engage the locking bar. How you can safety stand under the raised boom without risk of the boom dropping.
FULL STAND-IN OPERATOR COMPARTMENT
For a safer and more comfortable operation, the operator compartment allows you to fully stand inside.
EXCELLENT ACCESSIBILITY
PARTS COMPARTMENT
This handy storage compartment gives you easy access to spare parts.
DUAL HEADLIGHT
For better visibility at night, the TRL models have two headlights. One mounted on the boom and one mounted on the frame.
PROTECTED LIGHTS
The front lighting system is securely encased in a metal frame to keep it protected from damage.
GREASE PINS ON ALL PIVOT POINTS
The Mini Skidsteer features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
HARDENED STEEL BUSHINGS
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
CRATED
Baumalight will ship your mini skidsteer crated if shipped LTL for extra protection
