WLTRL630D
Baumalight Mini Skid Steer | Tracked | 24.8 HP | Diesel Kubota | 10.5 GPM (No Load) | 2-Speed
$37,013.00
Weight: 2930lbs

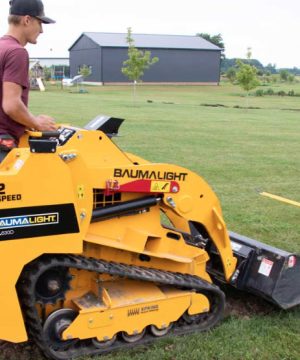

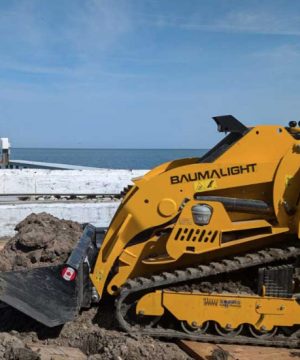

TRL630D 2-Speed Mini Track Loader Powered By Kubota
The Baumalight TRL630D tracked mini skidsteer is a 2-speed unit but otherwise much the same as the TRL620D, it uses the same engine and a similar hydraulic system. When switched to 2-speed the TRL630D travels at very high speeds and automatically slows to turn or under load it also automatically slows down the speed and ramps up the bulldozing power.
The hydrostatic drive is set up with true joystick controls with hydraulic pilot lines just like large skidsteers have. The remote hydraulic pump system with case drain delivers hydraulic flow that can be set to maximum engine capacity and the standard self-levelling bucket reduces spills and provides extra control when loading and unloading material. The Baumalight all metal frame mini track loader also features durable rubber tracks that can handle uneven or rough terrain, and ride-on platform for improved visibility while maneuvering through confined areas.
A three-pump hydraulic operating system is used, one for hydraulic flow to run the machine’s auxiliary & boom and two pumps for the propulsion systems, one for each drive motor. There is also a dedicated oil cooler to better manage hydraulic heat generation and the lift cylinders are cushioned at the end of stroke.
| Model | WRL58G | TRL536D | TRL620D | TRL620Y | TRL630D | TRL630Y |
|---|---|---|---|---|---|---|
| Gross Engine HP | N/A | 24.8 HP | 24.8 HP | 23.9 HP | 24.8 HP | 23.9 HP |
| Net Engine HP | 22.1 HP | 23.9 HP | 23.9 HP | 22.8 HP | 23.9 HP | 22.8 HP |
| Peak Gross Engine Torque | N/A | 52.7 ft/lb | 52.7 ft/lb | 46 ft/lb | 52.7 ft/lb | 46 ft/lb |
| Displacement | 0.688 L | 1.1 L | 1.1 L | 1.267 L | 1.1 L | 1.267 L |
| Engine Type | Gas | Diesel | Diesel | Diesel | Diesel | Diesel |
| Fuel tank size | 12.5L | 29.25L | 40L | 40L | 40L | 40L |
| Engine Brand | Honda | Kubota | Kubota | Yanmar | Kubota | Yanmar |
| Model | GX690 | D1105 | D1105 | 3TNV80F | D1105 | 3TNV80F |
| Drive type | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic | Hydrostatic |
| Drive control | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick |
| Carriage | Tires | Tracks | Tracks | Tracks | Tracks | Tracks |
| Size | 18 x 8.50-10 6P | 150x72x45 (upgradable) |
230 x 72 x 45 | 230 x 72 x 45 | 230 x 72 x 45 | 230 x 72 x 45 |
| Travel Speed (old) | 7.84 km/h | 5.7 Km/h | 4.57 Km/h | 4.57 Km/h | – | – |
| Travel Speed | Same | 8.8 Km/h (Shipped after Dec 2024) | 5.7 Km/h (Shipped after April 2024) | 5.7 Km/h (Shipped after April 2024) | 8.8 Km/h | 8.8 Km/h |
| Ground weight (without weight kit) | 5.5 lbs per sq. in | 5.7 lbs per sq. in (Narrow tracks) 3.9 lbs per sq. in (Wide tracks) |
4 lbs per sq. in | 4 lbs per sq. in | 4 lbs per sq. in | 4 lbs per sq. in |
| Relief setting (psi) | 2,730 | 3,000 | 3,000 | 3,000 | 3,000 | 3,000 |
| GPM under no load | 11 | 10.5 | 10.5 | 10.5 | 10.5 | 10.5 |
| Hydraulic Reservoir Capacity | 40 Litres | 29.25 Litres | 40 Litres | 40 Litres | 40 Litres | 40 Litres |
| Number of pumps | 3 | 3 | 3 | 3 | 3 | 3 |
| Model | WRL58G | TRL536D | TRL620D | TRL620Y | TRL630D | TRL630Y |
| Boom control | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick | Joy stick |
| Self Leveling | no | no | yes | yes | yes | yes |
| Pin Height | 70″ | 76″ | 76″ | 76″ | 76″ | 76″ |
| Ground clearance | 8″ | 6.5″ | 6.5″ | 6.5″ | 6.5″ | 6.5″ |
| Width (without bucket) | 38″ | 35.5″ (Narrow Track) 37.9″ (Wider Track) |
40″ | 40″ | 40″ | 40″ |
| Length without bucket | 62″ | 70″ | 70″ | 72″ | 70″ | 72″ |
| Tilt breakout force (with bucket) | 2340 | 3910 | ~4340 | ~4340 | ~4340 | ~4340 |
| Same as above with extra weight | 3300 | 3910 | ~4340 | ~4340 | ~4340 | ~4340 |
| Lift breakout force (with bucket) | 1385 | 1830 | – | – | – | – |
| Same as above with extra weight | 1900 | 1950 | – | – | – | – |
| Tipping capacity with bucket | 830 | 1670 | ~1820 | ~1820 | 1820 | ~1820 |
| Same as above with extra weight | 1180 | 1890 | ~2050 | ~2050 | 2050 | ~2050 |
| Rated Operating capacity (50% of tipping for wheeled unit, 35% of tipping for tracked units) | 415 | 585 | ~637 | ~637 | 637 | ~637 |
| Same as above with extra weight | 590 | 662 | ~718 | ~718 | 718 | ~718 |
| How is break out force and lifting capacity measured. | ||||||
| Weight (lbs) | 1,800 | 2,523 | 2,930 | 3,140 | 2,930 | 3,140 |
| Weight with weight kit | 2,200 | 2660 | 3,170 | 3,380 | 3,170 | 3,380 |
| Model | WRL58G | TRL536D | TRL620D | TRL620Y | TRL630D | TRL630Y |
2-Speed
When the job requires less torque and more speed, the TRL630D can be switched to 2-speed and easily shift from low gear to high gear, reaching a maximum travel speed of 8.8 km/h.
Bulldozing Power
With a two-speed set-up, the TRL630D’s low speed engages the maximum torque, resulting in an impressive amount of bulldozing power which automatedly engages when needed even when switched to 2-speed
Spring Cushioned Front Idler
The front idler in the tracked model is spring cushioned. This spring cushioning provides relief on the undercarriage when the track hits a curb or a large rock.
Operating Capacity
The TRL630D model offers a best in class operating capacity of 800 lbs (50% of tipping for wheeled unit, 35% of tipping for tracked units).
Far Reach
When you need to reach a far distance, the Baumalight Tracked model is designed for maximum reach. This design feature allows you to load and unload trailers or dump your load from further away.
Hydraulic Float
The hydraulic float feature allows the operator to gently skim the attachment along the contour of the surface without down pressure or lift.
Dual Joystick Controls
The dual joystick control system allows you to easily operate the drive system and the boom at the same time.
Aux Pressure Gauge and 12V Plug
The dashboard has a convenient auxiliary pressure gauge and a 12V plug.
Standard Case Drain
Sometimes referred to as a third line, the case drain line will relieve any excess pressure and drain it back to your return line, then into the reservoir.
Ground Speed
The ground speed of the Baumalight Mini Skidsteers is quite impressive with the tracked model able to reach 8.8 km/h.
Kubota Diesel Engine
The TRL630D model is powered by a rugged 24.5 HP Kubota D1105 Diesel engine.
Cold Air Intake and Oversized Radiator
To increase the power and ensure cooler running, the Kubota engine has a cold air intake and an oversized hydraulic radiator.
High Capacity Fuel Tank with Gauge
The high capacity fuel tank holds 40L of fuel allowing you to work longer. The tank also comes with a convenient fuel gauge.
Double Piston Pump Driven
Both sides of the Mini Skidsteer is driven by a dedicated dual piston hydraulic pump and a third one operates the boom & hydraulic AUX.
Ground Clearance
The TRL630D has a ground clearance of 6.5 inches.
Boom Safety Lock Bar
When you need to perform maintenance, the boom safety lock bar allows you to raise the boom and engage the locking bar. How you can safety stand under the raised boom without risk of the boom dropping.
Full Stand-in Operator Compartment
For a safer and more comfortable operation, the operator compartment allows you to fully stand inside.
Standard Self-Levelling Valve
The self-levelling valve makes sure the load remains level to the ground while you’re raising the boom.
Excellent Accessibility
Parts Compartment
This handy storage compartment gives you easy access to spare parts.
Dual Headlight
For better visibility at night, the TRL models have two headlights. One mounted on the boom and one mounted on the frame.
Protected Lights
The front lighting system is securely encased in a metal frame to keep it protected from damage.
Heavy Duty Boom
The boom arms are constructed with ¾” thick steel plates.
Grease Pins on all Pivot Points
The Mini Skidsteer features grease pins on all pivot points, reducing the risk of equipment damage and providing long life and easy servicing.
Hardened Steel Bushings
Spring Bushings made from high grade chrome-vanadium AISI 6150 spring steel on all main pivot points.
CRATED
Baumalight will ship your mini skidsteer crated if shipped LTL for extra protection
