WLWP245
Wallenstein WP245 Wood Processor | CAT 1 & 2 | 25 Ton | HP 45 | 12-24 GPM | Opens 24″ | Hyd Winch
$12,950.00
Weight: 1728lbs

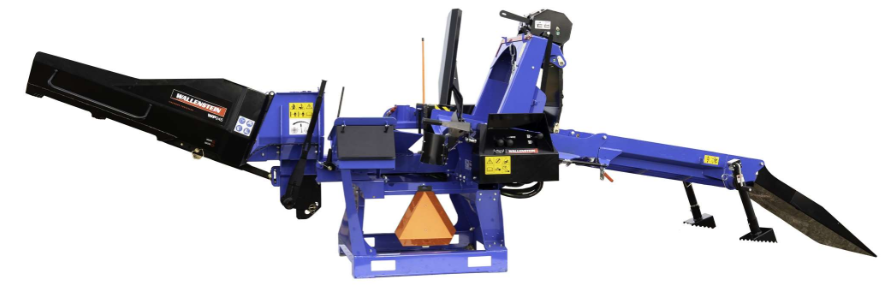

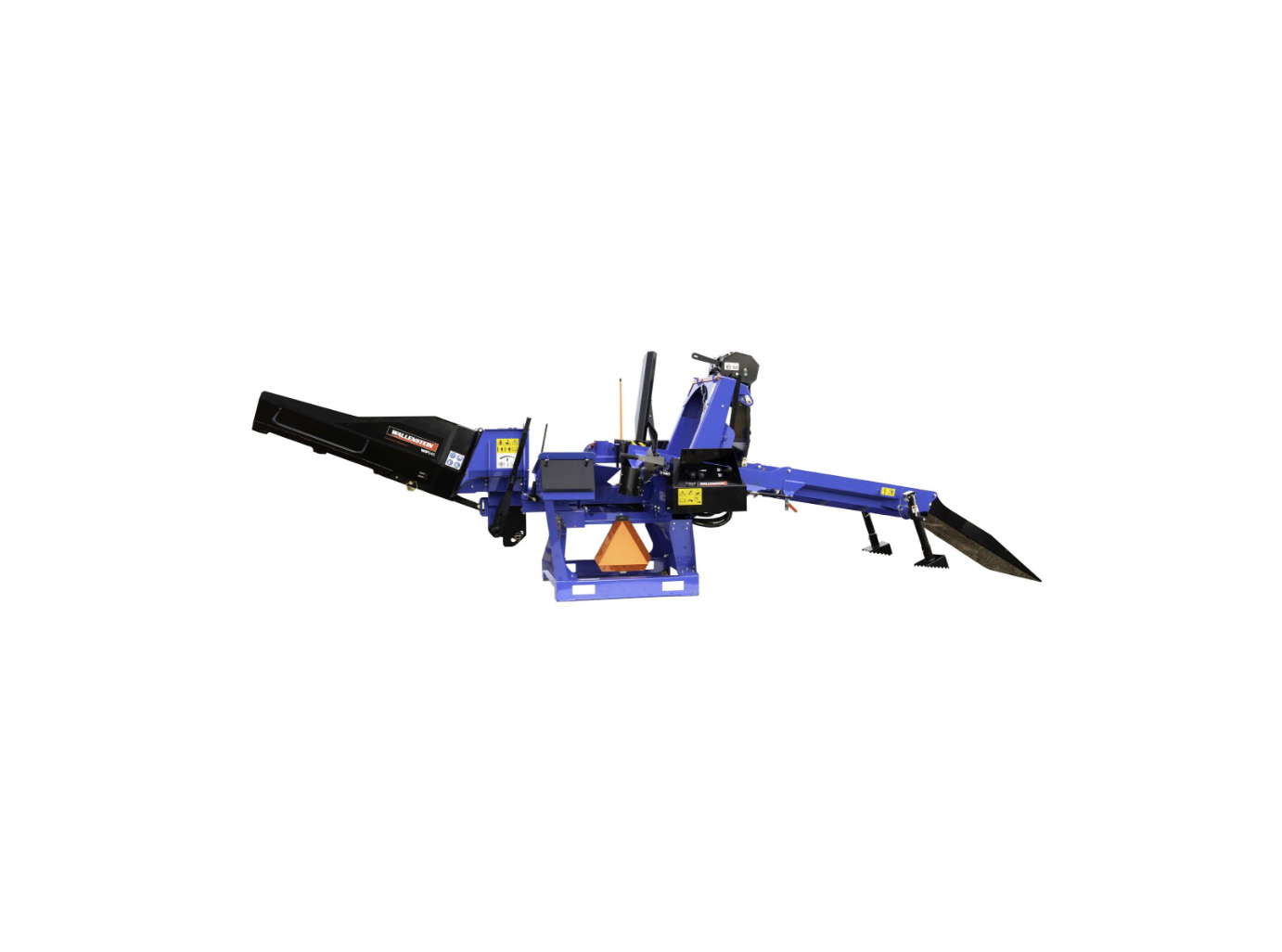

Wallenstein WP245 Firewood Processor
- CAT I/II
- 25 Ton Split Force
- Winch, Cut, & Split
- 4-Way Wedge
25 ton split force, the WP245 3-point hitch mount firewood processor conveniently transfers your tractors’s hydraulic power straight into your wood processing projects. Increased productivity, optimum erogonomic design, and minimal handling. All you have to do is winch and cut!
| Split Force | 25 Ton |
| Minimum Tractor HP | 45 |
| Required Hydraulic Flow | 12 – 24 US gpm (45 – 91 lpm) |
| Discharge Chute Height | 54″ (137 cm) |
| Split Opening | 24″ (61 cm) |
| Full Stroke Splitting Cycle Time | Varies with Hydraulic Flow from Tractor |
| Cylinder Diameter | 4.5″ (11 cm) |
| Maximum Log Diameter | 22″ (56 cm) |
| Throughput | 1 – 2 Cord Per Hour |
| Winch Pulling Capacity | 1550 lbs (703 kg) |
| Winch Rope Length | 50′ (15 m) |
| Winch Rope Diameter | 1/4″ (6 mm) |
| Total Weight | 1728 lbs (784 kg) |
| Dimensions Open (LxWxH) | 220″ x 69″ x 66″ (559 cm x 175 cm x 168 cm) |
| Dimensions Folded (LxWxH) | 98″ x 69″ x 79″ (249 cm x 175 cm x 201 cm) |
| Mounting System | Cat I & Cat II |
| Recommended saw bar length | 22” |
Adjustable 4-Way Wedge
Adjustable 4-Way Wedge
Easily adjust the wedge height to accommodate different sized logs.
Adjustable Offload Chute
Adjustable Offload Chute
Offloads firewood up to 54” high which is ideal for trailers, wagons or bins.
Auto Cycle - Hands Free
Auto Cycle – Hands Free
A single action automatically advances and returns the splitter back home, allowing you to begin cutting the next block.
Built In Toolbox
Built In Toolbox
Keep your small tools and replacement parts handy.
Floating Stabilizer
Floating Stabilizer
Prevents log from twisting when cutting to length, no activation required.
Hydraulic Winch
Hydraulic Winch
Hydraulic winch makes it very easy to winch in your heavy logs.
Length Indicator
Length Indicator
Set the indicator for consistent firewood length.
Pivoting Chainsaw Holder
Pivoting Chainsaw Holder
Easily mounts to most chainsaws. Securely holds your chainsaw in place while cutting logs. Saw can easily be detached without the use of tools. Will work with up to a maximum 30″ chain bar length. *Reduces maximum cut length by 1″ (2.5 cm)
