Wallenstein WP525 Wood Processor | Pull Type | 20 Ton | 6.5 HP Vanguard | Opens 23″ | Hyd Winch
$13,180.00
Weight: 1525lbs

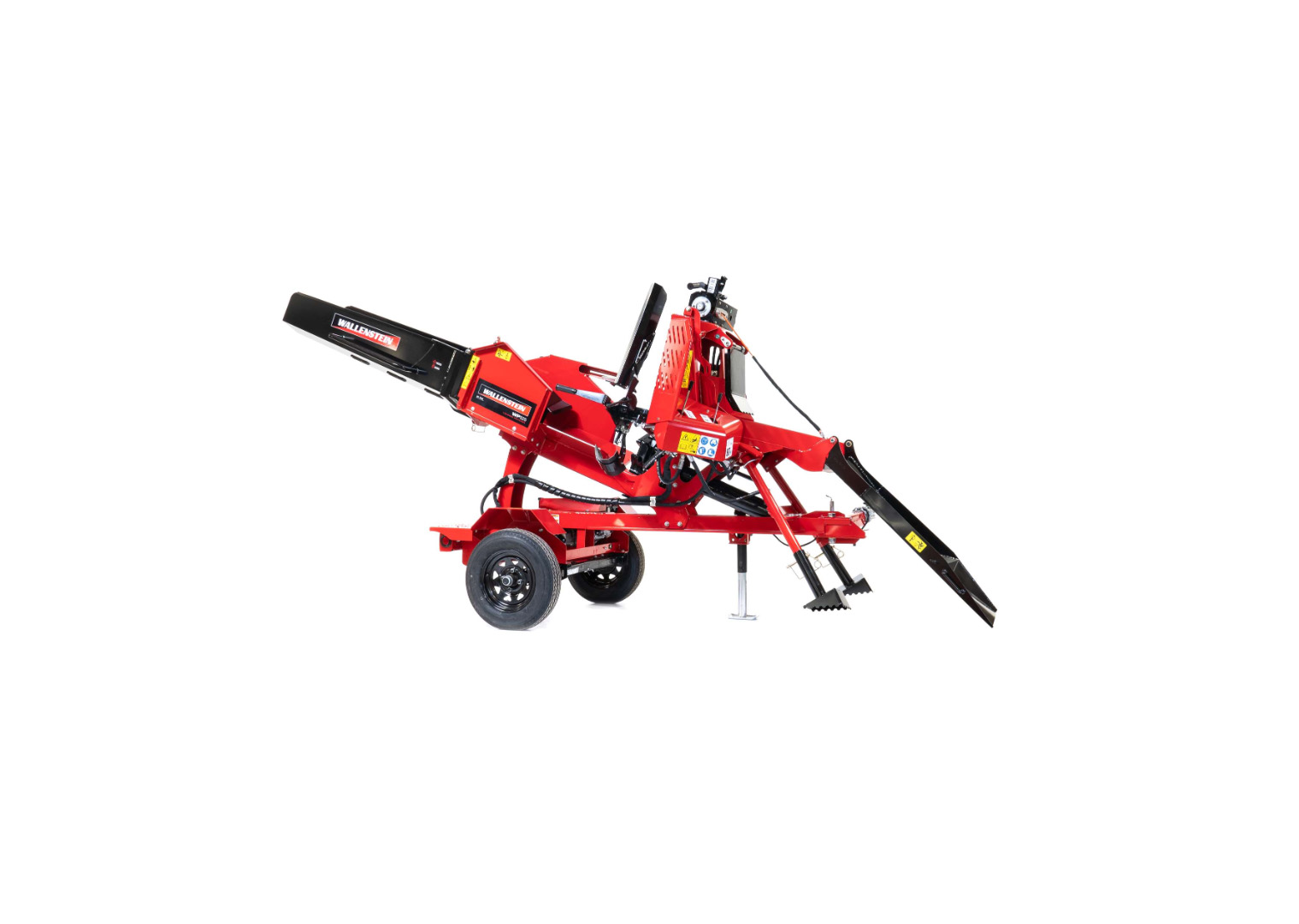

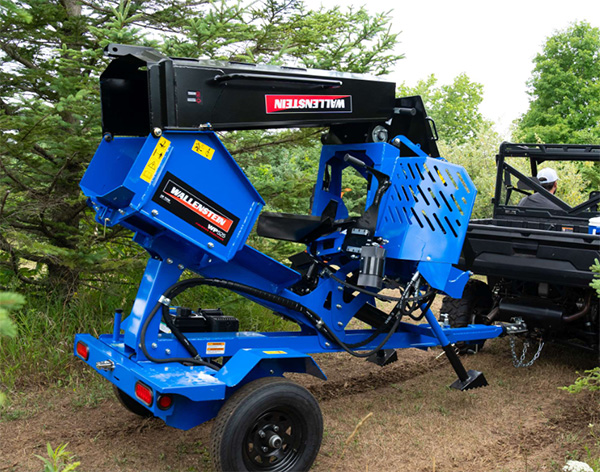

Wallenstein WP525 Firewood Processor
- Pull Type
- 20 Ton Split Force
- Winch, Cut, & Split
- 3-Way Wedge
20 ton split force, the WP525 towable wood processor is designed to winch, block, split, and pile without wasting time or breaking your back. Increased productivity, optimum erogonomic design, and minimal handling. All you have to do is winch and cut!
| Split Force | 20 Ton |
| Engine | Vanguard® 6.5 hp (203 cc) |
| Discharge Chute Height | 76″ (193 cm) |
| Split Opening | 23″ (58 cm) |
| Full Stroke Splitting Cycle Time | 13.2 seconds |
| Cylinder Diameter | 4″ (10 cm) |
| Maximum Log Diameter | 16″ (41 cm) |
| Throughput | Up to 1 Cord Per Hour |
| Winch Pulling Capacity | 1200lbs (544kg) |
| Winch Rope Length | 50′ (15 m) |
| Winch Rope Diameter | 1/4″ (6 mm) |
| Tires | 5.30 x 12.00 |
| Hitch | 2″ Ball |
| Tongue Weight | 240 lbs (109 kg) |
| Total Weight | 1525lbs (692kg) |
| Dimensions Open (LxWxH) | 175″ x 54″ x 85″ (445 cm x 137 cm x 208 cm) |
| Dimensions Folded (LxWxH) | 122″ x 54″ x 83″ (310 cm x 137 cm x 211 cm) |
| Hydraulic Capacity | 8 US gal (30l) |
| Recommended saw bar length | 22” (55.9cm) – 30” (76.2cm) |
| Splitter Valve Operation | Auto Return |
3-Way Box Wedge
Utilizing gravity through contoured design, this two-step function handles each split with ease.
Auto Return
After your split, simply pull the lever into the return position which will engage the auto return detent. The cylinder will retract automatically, allowing you to focus on your next piece.
Compact Standalone Design
Engineered to be lightweight with a small footprint. This compact processor is designed to be self sufficient from your tow vehicle, without limiting productivity or performance.
Floating Stabilizer
Prevents log from twisting when cutting to length, no activation required.
Highway Towable
Transport your unit with hitch, safety chains, highway tires, and full trailer lighting.

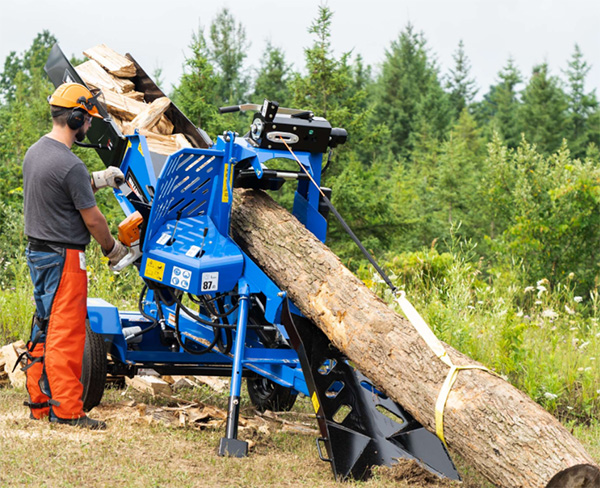

Hydraulic Winch
Hydraulic winch makes it very easy to winch in your heavy logs.
Length Indicator
Set the indicator for consistent firewood length.
Pivoting Chainsaw Holder
Easily mounts to most chainsaws. Securely holds your chainsaw in place while cutting logs. Saw can easily be detached without the use of tools. Will work with up to a maximum 30″ chain bar length. *Reduces maximum cut length by 1″ (2.5 cm)

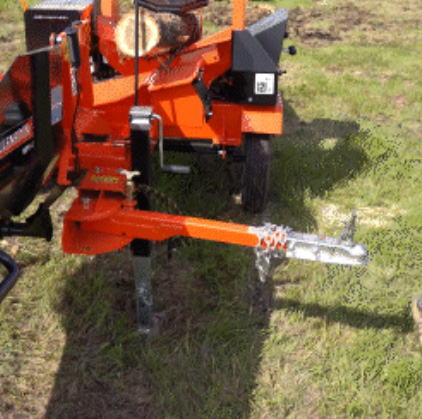

Sweep Tongue
Move the tongue out of your woodpile to allow easy hookup to towing vehicle.

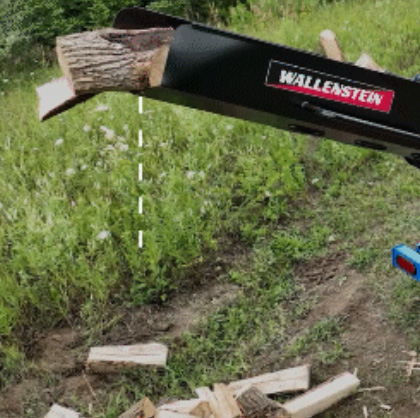

Tall Pile Height
Featuring a standard 76” discharge chute height, easily load processed firewood into your truck box or dump trailer.
Torflex® Suspension Axle
Axles are designed to absorb road impact, providing a smoother towing experience.
| Weight | 1525 lbs |
|---|---|
| Color | "Black", "Blue", "Orange", "Red", "Yellow", "Grey", "Green", "Realtree APX", "Realtree Edge" |
