Westfield MKX2 10″ X 36′ Auger | Low Profile Hopper | Up To 6,000 BPH

*PRICE DOES NOT INCLUDE SETUP OR SHIPPING – PRICED FOB FACTORY

MKX2 100-36

The MKX2 100×36 combines a 36′ main tube and a 9′ swing away to make auger set up a breeze. Just drive the tractor up to the bin, lower and swing the hopper into position and you’re ready to load your truck or trailer. Best of all, the MKX2 100×36 Truck Loader offers the capacity, quality, and safety you’ve come to expect from Westfield.

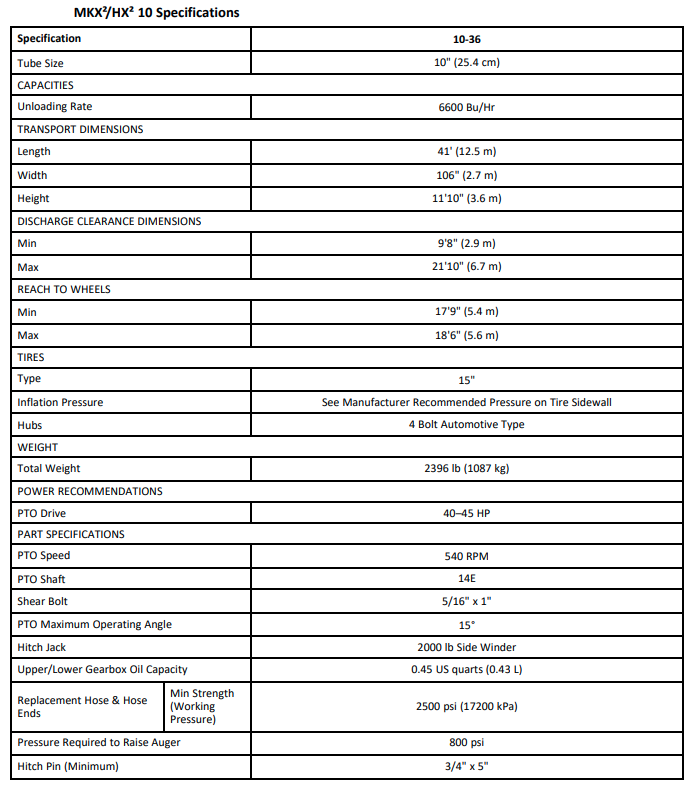

MKX2 10-36 Features

Flexible Positioning – Swing tube on left or right side
Only 40 PTO HP required
Manual Safety Winch Lift
12.5″ hopper height, plus rubber extension (10.5″ for low profile model) clears low bin unload discharges with ease
Height Raised – 22’7″
Tubing – 14 gauge welded steel
Flighting – 7 gauge with 10 gauge “Wear Edge” at grain transfer points
Flighting Shaft – 2″ x 11 GA tubing
PTO – 14 series with 5/16″ shear bolt
HP Required – 40 hp
Track – High yield 11GA roll formed
Undercarriage – 3″ x 11GA A frame
Axle – 2.5″ x 2.5″ x 1/8″ wall sq tubing
Hubs and wheels – 4 bolt automotive hub, 15″ wheel
Lift – Manual Safety Winch (Optional Hydraulic) 1/4″ aircraft cable

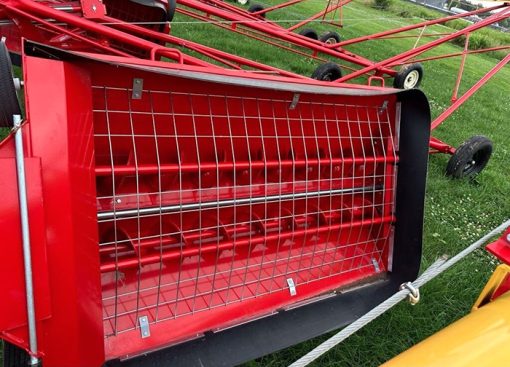

Low Profile Hopper –

Open Discharge Spout

- Allows for more efficient flow out of the tube
- New tapered bearing for increased life span
- Equipped with plastic hood for sleeker appearance
- Reduced HP Requirements
- Included on 10”, 13” and 16” augers

Redesigned Boot

- Separate boot flight with removable shafts

30’ Tubes & Flights

- Less tube flange and flight connections lead to less auger noise
- Less tube and flight hardware reduces time needed to assemble
- Common flight and tube lengths leading to less variation to stock
- Included on 10”, 13”, and 16” augers

Cylinder Updates

- Commonize cylinders to use with various auger sizes (Fewer cylinders required to stock)
- Change from internal check valve to external check valve (Easier to access/service/replace in the field)
